Smooth HD Streaming
IGMP Proxy/Snooping, Bridge, and Tag VLAN optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free. Put an end to buffering and stuttering videos once and for all and enjoy pleasant home entertainment.Guest Network Access
The Guest Network function provides secure access for guests to use your Wi-Fi network. Share with anyone, without compromising your private network. Make sharing easy and maintain security.Easy Setup and Use
Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS devices, including parental controls and access control.Specifications
Standards and Protocols
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
2 Bedroom Houses
3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity
Medium
Dual-Band
Allocate devices to different bands for optimal performance
Working Modes
Router Mode
Access Point Mode
Range Extender Mode
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Processor
Single-Core CPU

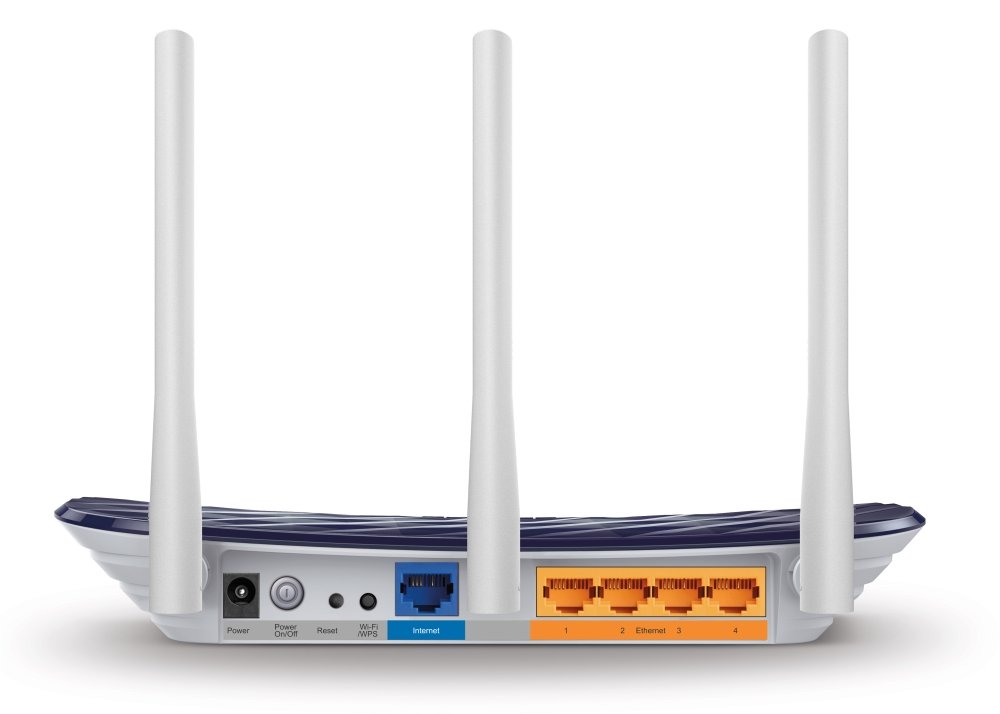

Ethernet Ports
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power
9 V ⎓ 0.6 A
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
NAT Forwarding
Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
DHCP
Address Reservation
DHCP Client List
Server
DDNS
NO-IP
Comex
DynDNS
Management Features
Tether App
Webpage
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
WiFi Transmission Power
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
WiFi Reception Sensitivity
5GHz:
11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:
-62dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
Dimensions (W×D×H)
9.1 × 5.7 × 1.4 in
(230 × 144 × 35 mm)
Package Content
Wi-Fi Router Archer C20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
