Bring You Lighter Network Life
The TP-Link Lite Wave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.Gigabit Ports For Faster Speeds

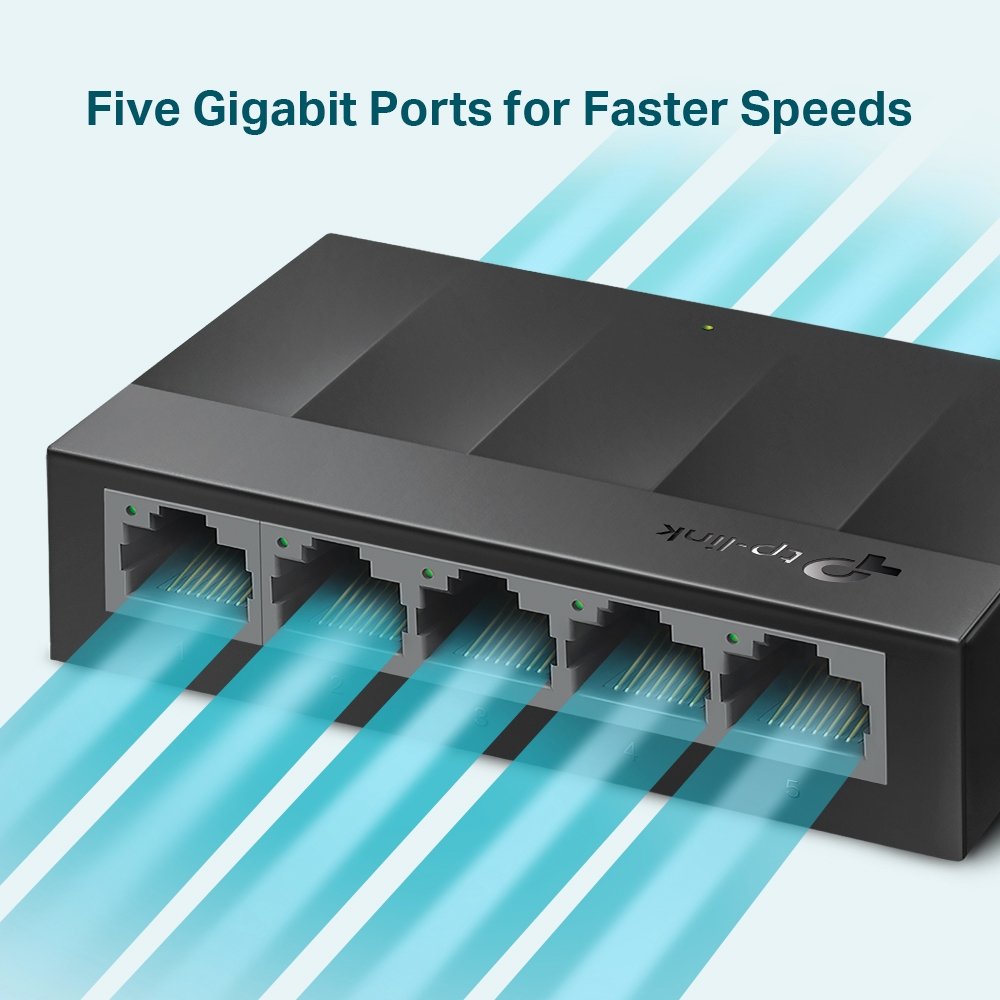

Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.Specifications
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface
5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H )
3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max. Power Consumption
3.7W
Max. Heat Dissipation
12.617 BTU/h
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.4 MppsSingle-Core CPU
MAC Address Table
2K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB
Advanced Features
Green Technology
802.3X Flow Control
Back Pressure
Transmission Method
Store and Forward
Certification
CE, FCC, RoHS
Package Content
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
